Flanged Line Sections

  • Filters
4 1/16" 50 ohm Spectraline Broadband expansion line assembly, flanged: Includes, "O" ring, hardware.
+

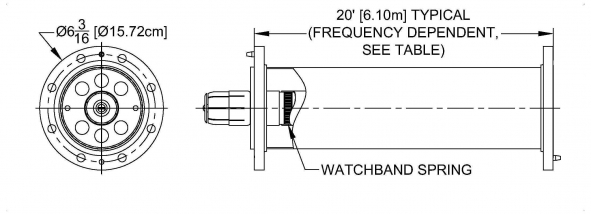

4 1/16" 50 ohm 20' expansion line assembly, random pin spacing, flanged: Includes, "O" ring, hardware. Used on: TV CH 2 - 6, FM 88.1 - 95.9, FM 100.1 - 107.9, no freq. specified. 84lbs.
+
4 1/16" 50 ohm 17.5' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on: Full FM Coverage. 74lbs.
+
4 1/16" 50 ohm 19' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on FM 96.1 - 99.9 80lbs.
+
4 1/16" 50 ohm 19.5' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on TV CH 9, 10, 13, 17, 21, 25, 26, 29, 30, 33, 34, 37, 38, 42, 46, 50, 54, 58, 59, 62, 63 and 67. 82lbs.
+
4 1/16" 50 ohm 19.75' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on TV CH 16, 20, 24, 28, 32, 36, 40, 41, 45, 49, 53, 57, 61, 65, 66 and 69. Weight 83lbs.
+
4 1/16" 50 ohm 20' optimized expansion line assembly, flanged: Include "O" ring, hardware. Used on TV CH 7, 8, 11, 12, 14, 15, 18, 19, 22, 23, 27, 31, 35, 39, 43, 44, 47, 48, 51, 52, 55, 56, 60, 64 and 68. 84lbs.
+
4 1/16" 50 ohm Industry Standard line assembly of customer specified length, flanged both ends with one swivel flange: Includes anchor insulator connector, "O" ring, hardware. 6lbs plus 4lbs per foot.
+
